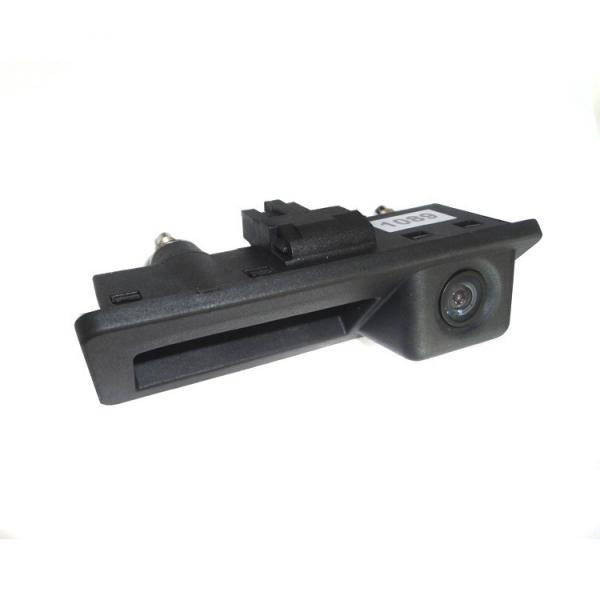

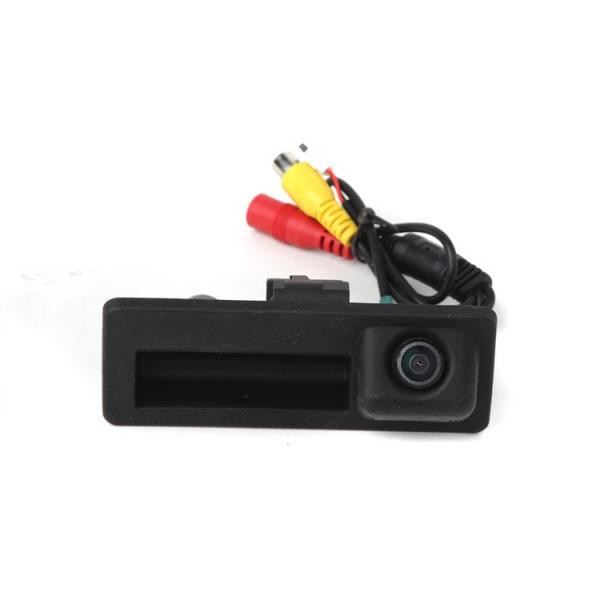

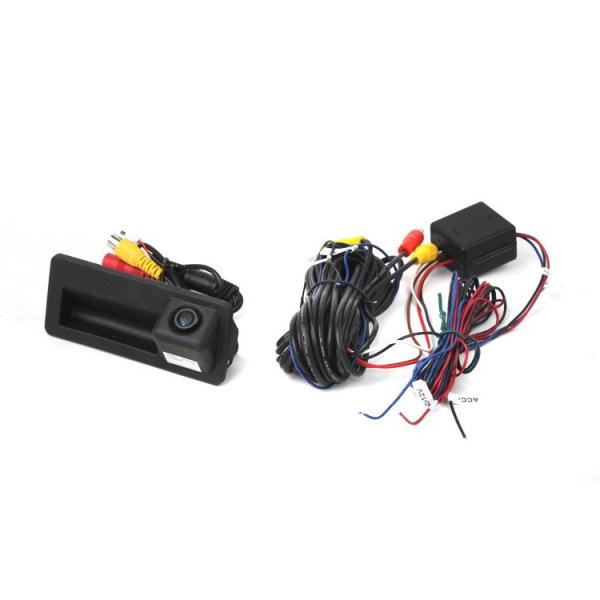

Csomagtér ajtóba építhető színes tolatókamera.
A következő modellekhez:
- AUDI A3 [8V] (4/2012->)
- AUDI A4 [B8] (2008->)
- AUDI A5 Coupe [8T] (6/2007->)
- AUDI A5 Sportback [8T] (9/2009->)
- AUDI A6 (2012->)
- AUDI Q3 [U8] (6/2011->)
- AUDI Q5 (2007->)
- PORSCHE Cayenne II. (2010->)
- ŠKODA Octavia III. Combi (2013->)
- VW Golf V. (10/2003->) Variant (combi)
- VW Passat B7 [362] (8/2010->) - sedan
- VW Passat B7 [365] (8/2010->) - Variant (combi)
- VW Tiguan [5N_] (5/2007->)
- VW Touran II. [1T3] (/2010->)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 48 x 110 mm
- pitch of mounting screws 72 mm
