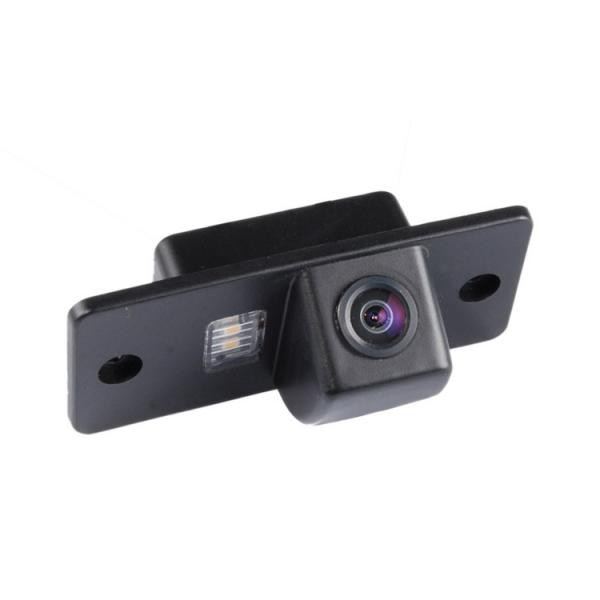

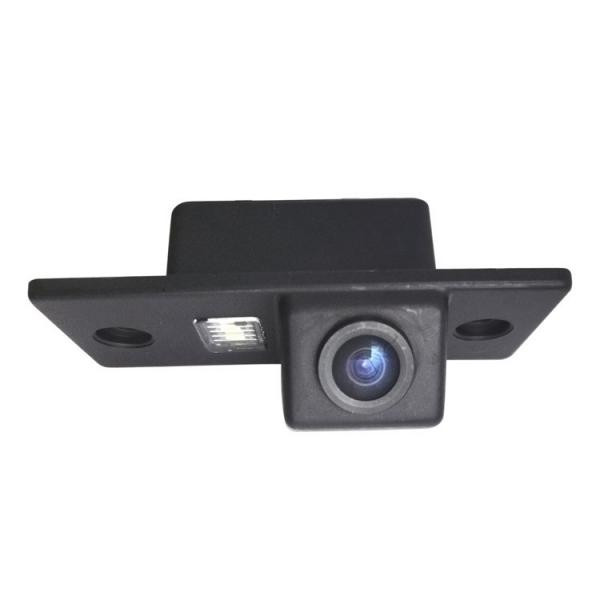

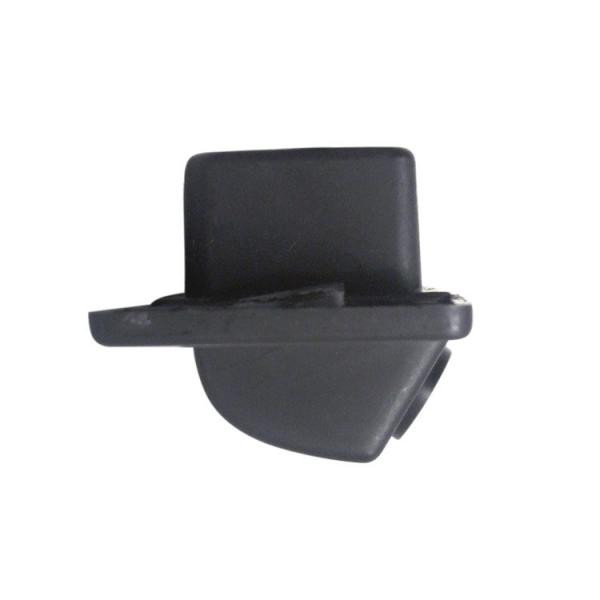

Hátsó rendszámtábla világítás helyére illeszthető színes tolatókamera.
A következő modellekhez:
- PORSCHE Cayenne I. (2002-2010)
- ŠKODA Fabia I. (1999-2008) hatchback / sedan / combi
- ŠKODA Fabia II . ( 2006 - > ) hatchback / combi
- ŠKODA Superb I. (2001-2008)
- VW Passat B5 ( 2001-2005 )
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 32 x 79 mm
- pitch between attachment points 60 mm
